Golden lcd monitor dual screen double sided and three sided 21.5"
24" 27" 32" lcd display for casino table and gaame machine
Golden lcd monitor dual screen double sided and three sided 21.5"
27" 32" lcd display for casino table and gaame machine
Golden frame
Customized design available
Customized function available

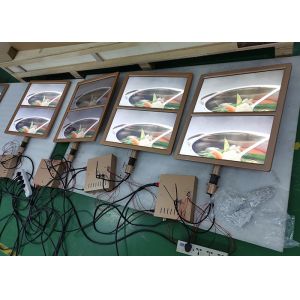

Golden lcd screen monitor double sided and three sided 21.5" 24"
27" 32" lcd display customized design
| SIZE (INCH) | MODEL NO. | BRIGHTNESS | RESOLUTION | RATE | CONTRAST | Consumption | View Angle | DISPLAY Area mm |
| 10.1" | TPK-OF-10 | 350nit | 1280×800 | 16:10 (H:V) | 1300:1 | 40W | 85/85/85/85 | 216.96×135.6 mm |
| 13.3" | TPK-OF-13 | 400 cd/m² | 1920×1080 | 16:9 (H:V) | 800:1 (Typ.) | 40W | 85/85/85/85 | 293.472× 165.078mm |
| 15" | TPK-OF-15 | 400nit | 1024×768 | 4:3 (H:V) | 800:1 (Typ.) | 60W | 80/80/70/80 | 304.128×228.096mm |
| 15.6" | TPK-OF-156 | 400nit | 1920×1080 | 16:9 (H:V) | 700:1 (Typ.) | 75W | 80/80/70/70 | 344.16× 193.59mm |
| 17" | TPK-OF-17 | 400nit | 1280×1024 | 5:4 (H:V) | 1000:1 (Typ.) | 85W | 89/89/89/89 | 337.92×270.336 mm |
| 18.5" | TPK-OF-185 | 400nit | 1920×1080 | 16:9 (H:V) | 1000:1 (Typ.) | 90W | 89/89/89/89 | 409.86×230.4mm |
| 19" | TPK-OF-19 | 400nit | 1280×1024 | 5:4 (W : H) | 1000:1 (Typ.) | 90W | 85/85/80/80 | 376.32×301.056mm |
| 19" WIDE SCREEN | TPK-OF-19W | 400nit | 1280×1024 | 5:4 (W : H) | 1000:1 (Typ.) | 90W | 85/85/80/80 | 376.32×301.056mm |
| 21.5" | TPK-OF-215 | 250nit | 1920×1080 | 16:9 (H:V) | 1000:1 (Typ.) | 100W | 89/89/89/89 | 475.2 × 267.3mm |
| 23.6" | TPK-OF-236 | 300nit | 1920×1080 | 16:9 (H:V) | 3000 : 1 (Typ.) | 100W | 89/89/89/89 | 521.395×293.285mm |
| 23.8" | TPK-OF-238 | 250nit | 1920×1080 | 16:9 (H:V) | 1000:1 (Typ.) | 100W | 89/89/89/89 | 527.04 × 296.46mm |
| 27" | TPK-OF-27 | 300nit | 1920×1080 | 16:9 (H:V) | 1000:1 (Typ.) | 110W | 89/89/89/89 | 597.888×336.312 mm |
| 32" | TPK-OF-32 | 400nit | 1920×1080 | 16:9 (H:V) | 1100:1 (Typ.) | 120W | 89/89/89/89 | 698.4×392.85 mm |
| 43" | TPK-OF-43 | 420nit | 1920×1080 | 16:9 (H:V) | 3000:1 (Typ.) | 130W | 89/89/89/89 | 941.184×529.416mm |
All of our products series, every design can be made with following
function (Both indoor and outdoor):
***USB version AD player: update advertisement by USB (Stand-alone
Version)
***Network version advertising player: update advertisement through
internet, support both Android OS and
UCOS OS, Windows OS (Network Version)
***PC version kiosk (Infrared / capacitive touch screen optional):
same function as computer, compatible with
Windows7,windows8,Windows XP, Linux, Ubantu, Apple etc. (Built-in
PC Version, touch screen optional)
Can also be customized with equipments such as printer, scanner,
camera, keyboard,motion sensor, WIFI adaptor etc.
***Android Infrared / capacitive touch screen kiosk: Android OS
with touch screen. Can also be customized with
equipments such as printer, scanner, camera, keyboard, motion
sensor, WIFI adaptor etc.
***LCD, OLED video wall, narrow bezel with HDMI or 4K display
***All kinds of monitors with or W/O touch, 2K or 4K display, open
frame, tablets of all size, DP, HDMI, VGA, DVI, USB ports for
option
***Transparent LCD, OLED
***Bar type LCD
| Name | 49inch monitor, open frame, non touch, no light |
| Panel parameter | Size | 49inch |
| Display area | 49" 1073.8*604MM |
| Brand | LG panel |
| Resolution | 1920*1080 |
| Brightness | 400cd/m*2 |
| Color | 16.7M |
| Aspect ratio | 16:09 |
| Response time | 6.5MS |
| Contrast | 4000:1 |
| View angle | 178°/178°(H/V) |
| IO connectors | 1XVGA, DVI , HDMI |
| Audio | N/A (NO SPEAKER, NO SOUND NEEDED) |
| Environment | Operating Temperature :0°C to 40°C
Storage Temperature :-20°C to 60°C
Humidity:20%-80% RH at 40°C, |
| System Power Supply | AC 110V~240V,50/60HZ |
| Power cord | Yes |
| TFT panel grade | Imported new panel |
| Case | OPEN FRAM, no tempered glass |
| Package | Inner 4CM PE foam,Middle export carton box,Outer export wooden box |
| 32" monitor QLED backlights |
| Name | 32" monitor QLED backlights |
| Panel parameter (refer the specification of panel) | Size | 32" |
| Display area | 698.4(H) x 392.85(V) |
| Brand | AUO--Model Name: P320HVN05.0 |
| Resolution | 1920*1080 |
| Brightness | WITH QLED BACKLIGHTS |
| Color | 16.7M |
| Aspect ratio | 16:09 |
| Response time | 6.5 S |
| DRIVING BOARD, AS SPECIFICATION | JRY-F9UHD-CV1 |
| DRIVING BOARD, AS SPECIFICATION | MST9104Q1,a total chip SOC that for LCD monitors with panel resolutions up to
1920X1080@144Hz. |
| IO connectors | Integrated 3 Combo Digital Ports (Supports DVI/ HDMI /DP); Built-in
LVDS transmitter, supports up to 1920X1080@144 LCD Panel.One HDMI
1.4 inputs port.One HDMI inputs port.One DP1.2 inputs port, |
| Environment | Operating Temperature :0°C to 40°C
Storage Temperature :-20°C to 60°C
Humidity:20%-80% RH at 40°C, |
| System Power Supply | AC 110V~240V,50/60HZ (MODEL: MP118) |
| Power cord | Yes |
| TFT panel grade | Imported new panel |
| Case | Open Cell as designed |
| Package | Inner 4CM PE foam,Middle export carton box,Outer export wooden box |
| 19" monitor QLED backlights-strentched lcd |
| Name | 19" monitor LED backlights |
| Panel parameter (refer the specification of panel) | Size | 19" DV190FBM-NB0 |
| Display area | 476.64(H) × 89.37(V) |
| Dimensional outline | 491.5(H) × 109.4(V) × 8.4(B) . |
| Brand | BOE--Model Name: DV190FBM-NB0 |
| Resolution | 1920(H) × 360(V) |
| Brightness | WITH LED BACKLIGHTS |
| Color | 16.7M |
| IO connectors | lcd monitor DVI/VGA/HDMI port for input signal |
| Environment | Operating Temperature :0°C to 40°C
Storage Temperature :-20°C to 60°C
Humidity:20%-80% RH at 40°C, |
| System Power Supply | AC 110V~240V,50/60HZ |
| Power cord | Yes |
| TFT panel grade | Imported new panel |
| Case | Open Cell as designed |
| Package | Inner 4CM PE foam,Middle export carton box,Outer export wooden box |
PRODUCTS:
From Design:
1, Floor standing model (Can be added wheels or no wheels, can be
fasten to floor,
can also design according to your idea)
2, Wall mounted screens
3, Hanging screens
4, Horizontal screens
From Function:
1,Monitor with or W/O Touch
2, Digital signage
3, Android touch / Non Touch
4,Windows touch / Non Touch
5,Selfservice terminal: can add camera, printer, scanner, led
light, etc.
From Environment:
Indoor and outdoor
Screen Size: 10.1" to 105"
Display: 1920*1080 or 4k 3840*2160
Android: Anvertising screen: RAM 1G, ROM:8G Android OS 4.4.2
Android Touch for use your own Android Software: RAM 2G/4G,
ROM: 8G/16G/32G for your choice, Android OS: 5.1, 6.0 or above.
PC: CPU: J1900. G1840, I3, I5, I7 optional.
Memory: 2G, 4G, 8G 16G optional.
Hard Disk: 500G HHD, 64G SSD, 120G SSD, 240G SSD optional.
Touch: Infrared Touch or capacitive touch optional.
Device: Can add camera, printer, scanner, card reader, password
keyboard, fingerprinter device,mouse, bill acceptor, card
dispensor, etc.
Outdoor Kiosk:
1. Waterproof. 2, Dusty proof. 3, lightning protection.
4. With tempered glass, anti glare, ultraviolet-proof.
5. Built-in cooling fan system. 6, Air conditioner Optional
7. Can be with or W/O touch 8, Temperature:-30°C to 50°C
9. Can build in device into kiosk 10, Customized design available.
11. Support Android, Windows or other OS.
12. High Brightness.
LCD Video wall:
Panel: LG, SAMSUNG, AUO/BOE
SAMSUNG, best quality
LG: great quality
BOE/AUO: general quality
Connection way:
1. Using HDMI splitter, stable quality, HDMI resolution.
2. Using DVI looping connection, HDMI resolution.
3. Using DP looping connection, 4K resolution, need signal INPUT
and
media resource to be 4k.
4. Can use HDMI matrix for multi-signal input such as PC,
camera,etc.
5. Can use large screen processor for signal input, for example:
16 HDMI in, 16 HDMI out, 8 VGA in and 8 VGA out, etc, can be
customized.
Can have float windows, picture in picture.
Cables:
HDMI cable, DP cable-if 4k, RJ45 cable, power cables,etc.
Bracket:
1. Normal bracket, can not pop-in and pop-out
2. Pop-in and pop-out bracket, better for future front maintaince
For signal input:
1. Can use media player boxes for input HDMI or 4K signal. Can buy
media player box in local market or buy from us.
2. Can use PC for signal input.
3. Can use camera for signal input with HDMI/SDI output.
4. Matrix
5. Large screen processor
Outer design:
1. Install onto the wall
2. Make as floor standing
3. Floor standing with cabinet below
4. Can make whole unit with frame and cabinet
5. Can make whole unit with floor standing cabinet, frame, can add
big tempered glass,
add IR touch frame, make the whole video wall as big touch screen
monitor, can also
build in PC or android hardware, make it as Android or PC touch
kiosk.
6. Can add motion sensor into this big kiosk, let it have motion
sensor function.
7. Can also make curved bracket, to make it as curved video wall.
Product Specs:
Android version
Panel
Details | Panel Brand | Samsung/LG |
| Android | CPU | Quad-Core / Octa-Core |
| RAM | 2GB/4GB |
| ROM ( internal memory ) | 8GB/16GB |
| OS | Android 5.1 or above |
Decoding
Formats | Video Format | MPG,MPG-1,MPG-2,MPG-4,AVI,MP4,H.264,MOV,WMV,RM,RMVB,etc. |
| FHD 1080P Video | YES |
| Picture Format | JPG, BMP,PNG,etc. |
| Text | TXT |
| Audio Format | MP3,WAV |
| Interface | HDMI Output | 1 ( Quad-Core version ) |
| SD/ TF card slot | 1 |
| USB | 1 |
| RJ45 | 1 |
| Network | Wifi | available |
| 3G/4G | optional |
| Ethernet | available |
| Touch screen | option 1 | IR touch ( 10 points ) |
| option 2 | capacitive touch (10 points ) |
| Speakers | Speakers | 2 x 5W stereo speakers |
| remote control software | optional | |
| Features |
| 1.Application fields:public places ,for example,shopping mall,
restaurant,airport, square, commercial buidings,etc. |
| 2. Outer shell is made of extra good quality metal material and
tempered glass. |
| 3.This machine is of android OS design, which could be connected to
internet,and supports remote office cotrol . |
| 4.Remotely report system utilization and memory usage. |
| 5.Content plays automatically upon set up of schedule. |
| 6.Control, monitor and design screen layouts remotely by the remote
control office. |
| 7.Color for metal outer frame is available with Black color,
Shinning-silver color, Golden Color, cream-white color; Color Is
Optional. |
| 8.APPs are available on Google Play and APP Store |
| 9.Easy connection to wifi. |
PC version
| Panel Details | Panel Brand | Samsung/LG/AUTO/ LCD/LED/Chimee |
| Mini-PC | CPU | i3, i5, i7 |
| RAM | 4GB/8GB |
| ROM | 500GB HDD or 64/120/240GB SSD |
| OS | Windows OS or Linux OS |
| Interface | HDMI Output | 1 |
| USB | 4 |
| RJ45 | 2 |
| Network | Wifi | support |
| 3G | support |
| Ethernet | support |
| Touch screen | option 1 | IR touch ( 10-16 points ) |
| option 2 | capacitive touch (10 points ) |
| Speakers | Speakers | 2 x 2W or 2 x 5W stereo speakers |
| remore control software | optional |
|
|
|
| Features |
| 1.Application fields:public places ,for example,shopping mall,
restaurant,airport, square, commercial buidings,etc. |
| 2. Outer shell is made of extra good quality metal material and
tempered glass. |
| 3.This machine is with mini PC built in, customers can install
Windows or Linux freely. Or let us install OS before shipment. |
| 4.Easy connection to Internet. |
Shenzhen TOPADKIOSK is highly specialized in the field of LCD
Digital Signage products, LCD DISPLAY, QLED display, OLED display.
We have developed our own LCD products Series, such as face
recognition terminal with temperature sensor for access control
system, safe temperature kiosk, thermal scanner, digital signage,
all In One PC, touch screen, lcd video wall, outdoor IP67 High
Brightness LCD Digital Signage and TV, etc, the size is available
with 7" Inch to 98 Inch etc. These products have been widely used
in the USA, Europe, Southeast Asia, the Middle East, Africa and
other countries and regions. These products are suitable for
advertising in lots of areas, such as buildings, shops, hotels,
supermarkets, railway stations, bus stations, airports, taxis,
buses and other outdoor areas. Quality and Service is Our
Symbol.The most important factor for us to win our customers‘
hearts and found the long-term business relationships with our
customers is quality and service. With these years‘ research,
development and manufacture, we have accumulated our special
experience and methods to control the quality through the whole
process of designing, material purchasing, manufacturing and
marketing. Especially for the material quality, we have founded
firm relationships with our suppliers and even invested in some
supply companies to directly control quality. We offer 7*24 hours
service to all our clients. Our sales person and after-selfteam
will keep on line to answer and solve all questions for you.
Providing services beyond our customers‘ expectations is our
purpose. Our excellent pre-sales services and after-sales services
have earned us many customers‘ hearts. Customized designs are most
welcome! Our advantage is to give solution to our clients according
to their needs.
